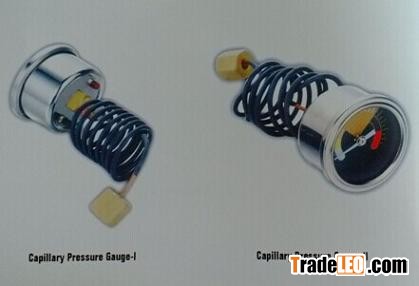

Capillary Pressure Gauge Size: from 1.5’’ to 2.5’’
Pressure range: from 0 to 300 psi
Socket: brass or brass chrome plated
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Phosphor bronze or Stainless Steel material
Lower Case: 304 St St., 316 St. St material, polished or not polished,
back with no screws
Bezel: 304 St St crimped bezel or 316 St St crimped bezel.
Window: PC lens or glass lens
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%
Movement: Steel, brass or stainless steel material
Pointer: Aluminum material
Restrictor: Brass
Capillary: Brass
Over pressure: 130%
Connection type: One connection welded to the capillary
