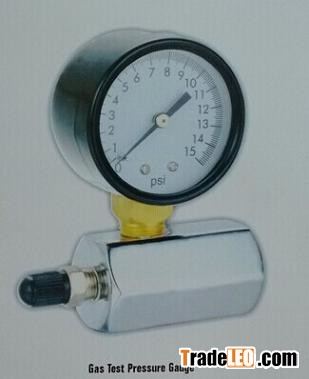

Gas Test Pressure GaugeSize: from 2’’ to 2.5’’
Pressure range: from 0 to 200 psi
Socket: brass connection with steel chrome plated material
Thread: 3/4’’NPT female
Bourdon tube: Phosphor bronze
Case: Black steel
Bezel: Black steel press-on bezel.
Window: PC lens, glass lens or plastic press-in
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%
Movement: Steel, brass or stainless steel material
Pointer: Aluminum material
Restrictor: Brass material
Over pressure: 130%
