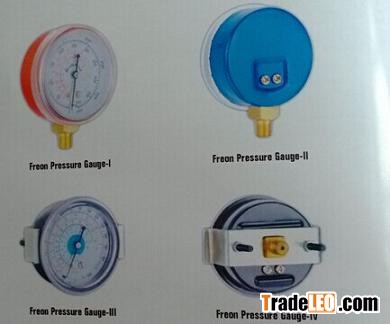

Freon Pressure Gauge Size: from 2.5’’ to 3.5’’
Pressure range: from 30inHg to 800 psi
Socket: brass material
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Phosphor bronze or Stainless Steel material
Case: Plastic, black steel, chrome plated
Bezel: no bezel.
Window: Screw-on PC lens
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%, 1%
Movement: Steel or brass
Pointer: Aluminum
U-Clamp: Chrome plated or St St material
Restrictor: Brass or St St material
Over pressure: 130%
