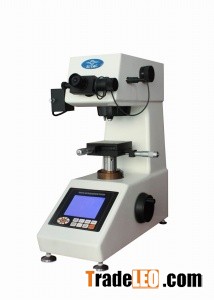

digital micro hardness tester MHV-1000(2000)test load: 10, 25, 50, 100, 200, 300, 500, 1000, (2000)gf
Testing Procedure: Automatica load and release
Microscope Magnificaton: 400x, 100x
Output: buitl-in printer, RS232 interface
Turret Mechanism: manual/ auto, turning turret
Main Data Display: Test Load,Indentation length, Hardness Value, Dwell time,Hardness Conversion
Test Range:1HV - 2967HV
Dwell Time: 5-60s
Minimum Micro Graduation:0.0625um
Maximum Specimen Height/depth: 100/95mm
Dimensions of X-Y Stage: 100 x 100mm
Maximum Movement: 25mm in XY axis
Power Supply:AC 110V/220V, 60/50Hz
