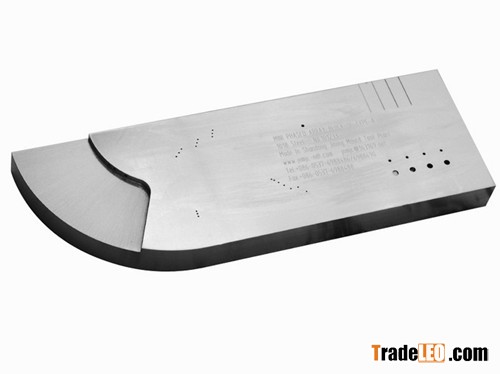

These NDT UT Phased Array Calibration Block Type A (Metric) is used for angle beam verification, probe angle exit point, calibration for wedge delay, sensitivity, DAC/TCG for thicknesses up to 50mm, and crack sizing.• Metric version
• Fitted storage case included.
• In accordance with ASME Code Cases 2541.2557 and 2558.
• Material: 1018 Steel,Aluminum Alloy, SS
Description:
• (19) Thru-holes @ 1.0 mm diameter
• (1) Thru-hole @ 2.0 mm diameter
• (4) Flat-bottom holes @ 2.0 mm diameter x 2.0/4.0/6.0/8.0 mm deep
• (4) Flat-bottom holes @ 4.0 mm diameter x 1.0/3.0/5.0/7.0 mm deep
• (3) Flat-bottom holes @ 2.0 mm diameter x 3.0 mm deep machined into the 25mm radius
• (4) EDM Notches @ 0.1/0.2/0.3/0.4 mm deep x 0.5 mm wide x 25.0 mm long
• Dimensions: 25.0 mm x 150.0 mm x 300.0 mm
• Fitted storage case.
