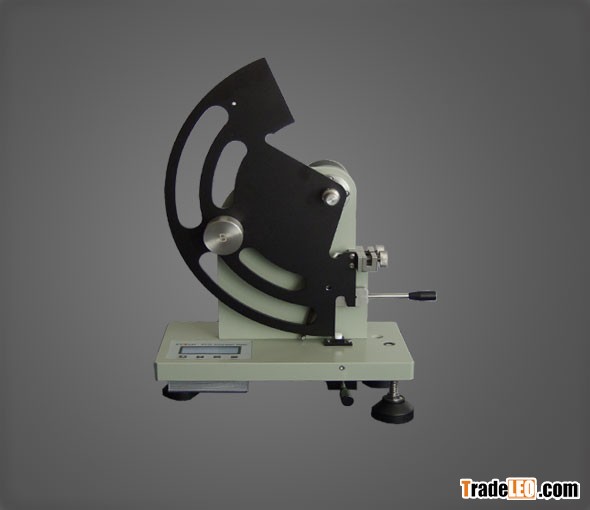

EY10 is an Low-power Elmendorf tearing strength tester, fully standards-based fan Swing Pendulum Using high-precision optical sensor, Automatic pendulum weight detection,, USB port low-voltage power supply, the maximum range 128N testing capabilities,Can be tested separately, can also be connected to the computer, to provide you with accurate test reports.Technical Specifications
Standard Pendulum Weights (A-D): 8N,16N,32N,64N
Optional Pendulum Weight (E): 128N
Measuring accuracy: 1% of Pendulum range
Readability: 1mN
Calibration weights: 50% of each Pendulum range
Units of Measurement: N, cN, mN, kgf, gf, lbf, ozf
Number of Specimens (Plies):1 to 16
Maximum Specimen Thickness: 8mm
clamps clearance:2.5-3.5mm
Cut Length:15 - 20mm
Blade: Titanium nitride coated
Dimensions: 360mm×250mm×360mm(W×D×H)
Weight: 30Kg
Power: DC5V 1W
Warranty: 24 Months
