Good to practice and understand phased array features

Reference to detect long-term changes in the characteristics of an instrument

Determination of beam profile

evaluation of beam steering capability

evaluation of linear and angular resolution

evaluation of focusing ability

Applications:

Instrument performances evaluation

Customers demonstration

Focusing calibration

Quality of signal verification

Build DAC curves

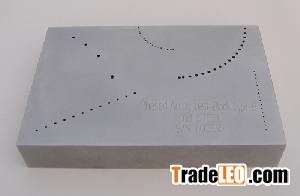

Description:
• Dimensions: 150mm x 100mm x 25mm
• 1018 STEEL
• In accordance with ASTM E2491
• Four (4) angled holes (30°, 45°, 60°, 75°) at 1.5mm diameter
• Array of 18 holes on 25mm radius at 1.0mm diameter
• Array of 18 holes on 50mm radius at 2.0mm diameter
• Vertical column of 16 holes at 1.0mm diameter
• Angled row of 12 holes at 1.5mm diameter

We are exprerienced to help you create your own PA blocks as your requirements.
