Brand:rosemount
Quantity:1000
Send Inquiry
Measuring rangeFrom -7.5...7.5Kpa to -7000...7000Kpa
Maximum range turndown 100:1
Min. operating pressure: 0.12Kpa
Static pressure: 30bar...130bar
Technical Data
Accuracy:0.075 %
Intrinsic safety: ExiaCT4CT6
Supply: 10.5-45VDC
Output: 420mA with superimposed digital communication signal for HART protocol
Environment: -30+80
Long term stability: 0.1%/year
Static pressure effect: <0.005% of URL/1V
Power supply effect: <0.01% of URL/g when tested 200Hz in any axis relative
Vibration effect: Zero shift which can be calibrated out, no span effect
Ingress ProtectionIP65

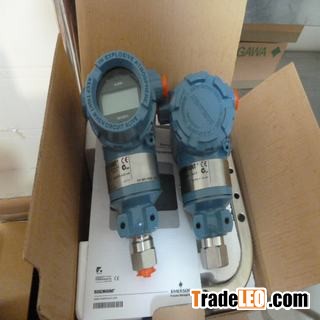

Rosemount 3051 transmitter, Differential Pressure Transmitter, pressure sensor,
Differential Pressure Transmitter STK335 can accurately measures the pressure of gases, vapours, and liquids and is used in all areas of chemical and process engineering.
