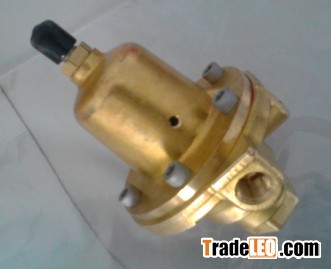

Type 1301F: Direct-operated high-pressure reducing regulator inlet pressures
up to 6000 psig / 414 bar and outlet pressure ranges from 10 to 225 psig / 0,69
to 15,5 bar
Type 1301G: Direct-operated high-pressure reducing regulator
inlet pressures
up to 6000 psig / 414 bar and outlet pressure ranges from 200 to 500 psig /
13,8 to 34,5 bar
Outlet Pressure Ranges
Maximum Emergency Outlet Pressure
Type 1301F: 250 psig / 17,2 bar
Type 1301G: 550 psig / 37,9 bar Internal
Body Size and End Connection Style
1/4-inch FNPT 6000 psig / 414 bar
Type 1301F: 10 to 225 psig / 0,69 to 15,5 bar
Type 1301G: 200 to 500 psig / 13,8 to 34,5 bar
Pressure Registration
Internal registration
Temperature Capabilities
-20° to 180°F / -29° to 82°C8 Pounds / 4 kg
Approximate Weight
2kg
