General

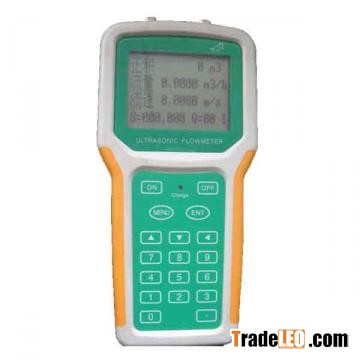

AFV-5G is a handhold transit-time ultrasonic flow meter
with clamp-on transducers for non-invasive liquid measurement.
Our microprocessor based, user-friendly and
field programmable flow measurement technique
allows no interruption of the process flow
and has low installation costs.

Features
1.4-line LCD display with flow mate; totalized and signal condition
2.The flow meter is designed for high accuracy of +/-1.0%
3.Small size (200*92*32mm); light weight ( 538 g )
4.Wide range; velocities ( 0.01-+/-32 m/s)
5.Ni-MH battery life for up to 10 hours continuous operation.
6.Transducers for pipe sizes of 13 to 6000 mm
7.Transducers include the magnet devise which can install on metal pipe without mounting belt
8.Date logger which records flow mate, date, total flow, signal condition, etc.
9.Response Time: less than 1 second
