Price:Negotiable
Brand:ICE-HV-120A-H
Quantity:5000

Send Inquiry

Superb performance for RC Helicopter & Plane
Top quality at best price
Good compatibility with kinds of motors
CE approval

***This ESC can be compatible with helicopter and
airplane.***

--- Product Specifications:

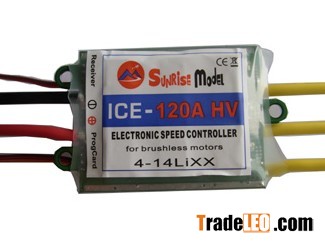

Model: ICE series HV-120A SBEC
Constant Current: 120A
Max Current: 140A for 10 seconds
Input Voltage: 4-14cells li-XX or 12-42 Ni-MH/Ni-Cd battery
BEC: SBEC
BEC Output: 5.5V/6A
PWM: 8-16 KHz
Max Speed: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 68mm*53mm
Weight: 102g

---Product Features:
Compatible with a programming card
Soft Start-up and Constant RPM mode ?
EMK brake adjustable for F3A
High capability of anti-interference
Low-voltage cut-off protection
Timing of motor ranges from 0° to 30°
Blocked rotation protection
Reversible rotation direction
Over-temperature protection and Overload alarm
Active freewheeling circuit
Throttle signal lose protection. When the signal loses for
3 seconds, the power will automatically be cut off
