Features
Low cost

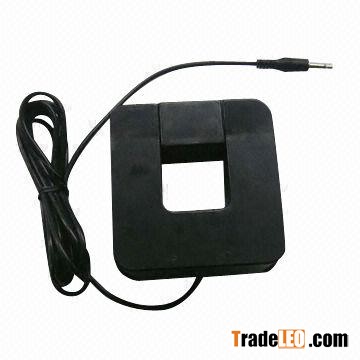

Split core design;safer,easier installation,portable.
Specifications
?Rated Current 5A to 3000A loads.
?Rated output: 0.333Vac
?Accuracy:±1% from 5% to 120% of rated current
?Phase Angle: less than 2 degrees at 50% of rated current
?Insulation Voltage:600Vac
?Maximum Primary Voltage:5000Vac(Insulated Conductor)
?Operating Temperature:-15?to 60?.
?Frequency Range:50-400Hz
?Leads:4Foot(105cm),UL 1015,Twisted Pair,
0.34 mm2(22AWG)
?UL&CE recognized. RoHS Compliant
?Output and leads can be customized
