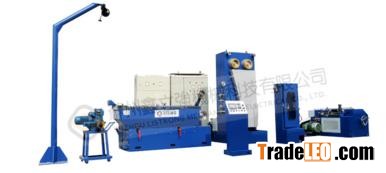

Intermediate Wire Drawing Machine with Continuous Annealing, - Sell

Intermediate Wire Drawing Machine with Continuous Annealing,

2017-01-13 14:15 Views:137

Price:Negotiable
Brand:Listrong

Machine type 17DST 17DT 17MDST
Inlet diameter(MM) F2.5-F3.5 F2.5-F3.5 F2.5-F3.2
Outlet diameter (MM) F0.4-F1.6 F0.4-F1.2 F0.4-F1.2
Max. speed(MPM) 1800 1200 1500
Max. number of drawing dies 17 17 17
Mechanical reduction ratio 18% 18% 15%
Fixed-speed capstan reduction ratio 12.5% 12.5% 11%
Drawing capstan:Tungsten coated
Main machine power 55KW 45KW 45KW
Annealing method DC three-section annealing
Take-up bobbin size(MM) F630-Max. F630-Max. F630-Max.
Brake Pneumatic brake
