Rod Breakdown Machine with Annealing, Model 9DT - Sell

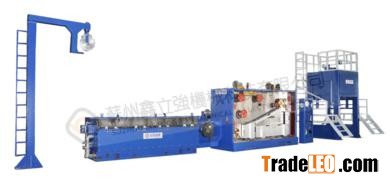

Rod Breakdown Machine with Annealing, Model 9DT

2017-01-13 14:15 Views:124

Price:Negotiable

Rod Breakdown Machine Technical Parameters
Machine type: 9DT
Inlet diameter(MM): F8
Outlet diameter (MM): F2.5-F3.5
Max. speed(MPM): 800
Max. number of drawing dies: 9
Mechanical reduction ratio: 20%
Fixed-speed capstan reduction ratio: 17%
Drawing capstan: ungsten coating.
Max. capstan diameter(MM): F450
Fixed-speed capstan diameter(MM): F450
frame: Welded
Main machine power: 160KW, 160KW AC motor
ake-up power: 15KW, 15KW 3Phase AC motor
