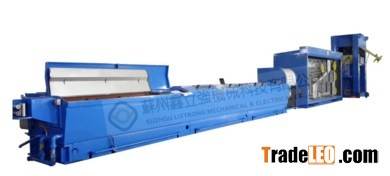

Rod Breakdown Machine with Annealing , Model 13DT

2017-01-13 14:15 Views:169

Price:Negotiable

Rod Breakdown Machine Technical Parameters
3DT-CU 3DT-AL
Max. speed(MPM): 1500 1500
Max. number of drawing dies: 13 13
Outlet diameter (MM): f1.20-f3.5 f1.6-f4.7
Mechanical reduction ratio: 23.6% 23.6%
Max. capstan diameter(MM): F450 F450
Take-up bobbin size(MM): F500-f630 F500-f630
Drawing motor(KW): 350 250
Leading motor(KW): 55 45
Take-up motor(KW): 30 30
Motor control :DC motor digital control
