Brand:TINSHARP
Quantity:500
Send Inquiry

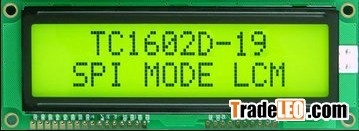

1) 16x2 LCD with SPI 2) LCD size:122x44mm
3) View area: 99.2 x 24mm
4) LCD module mode:STN,PositveY-G,Y-G B/L
5) 3.3V supply
Functions& Features
1) Construction : COB(Chip-on-Board)
2) Display Format : 16x2 Characters
3) Display Type : STN, Transflective, Positive, Y-G
4) Controller : ST7070-0B or compatible controller
5) Interface : Serial interface
6) Backlight : yellow-green/bottom light
7) Viewing Direction : 6 O’clock
8) Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
9) Power Supply Voltage : 3.3 V
10) VLCD Adjustable For Best Contrast : 3.0 V (VOP.)
11) Operation temperature : -0°C to +50°C
12) Storage temperature : -10°C to +60°C
Product range
Character Module:Whole product series for for8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4 ,
characters each in the format of 5x8 dot matrix.
Graphic Module: Including 96x26 dots,122x32 dots,128x32 dots,128x64 dots,192x64 dots,160x160 dots,240x128 dots,240x160 dots,320x240 dots series.
