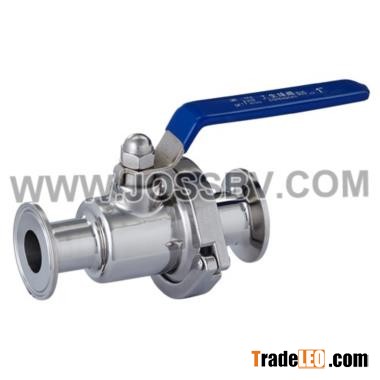

Sanitary Non-retention Ball Valve
NO. JOBV-2009

Applications:
Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.

Design Features:
Size: 1/2”-4”, DN10-DN100
Temperature: -20C-120 C
Pressure: 10 Bar
Material: AISI304, AISI316L
Gaskets: PTFE FDA 177. 1550
Whatever The Connection, It Does Not Change The Total Length Of The Valve
Connection: Clamp, Weld, Male, Flange, Standard With 3A, SMS, DIN, RJT, IDF.
Advantage: Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators.
Certificate: PED/97/23/EC
