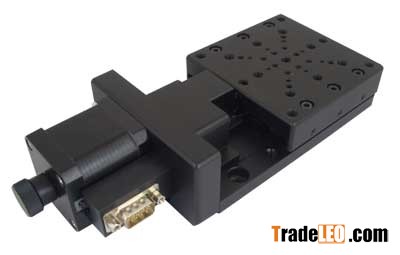

Miniature Motorized Linear Stages, 30mm, 50mm, 75mm Travel, Stepper Motor Item Number: WN261TA30H Structure Travel Range: 30mm (1.18") Platform: 90mm x 90mm (3.54" x 3.54") Bearing Construction: Grinding Lead Screw (1mm of leading) Travel Guide: Crossed Roller Bearing Stepper Motor (0.72°): STP-42D3016 (Stepping Motor with 2-Phases & 1.8° of Step Angle) Material - Finish: Aluminium Alloy - Black-Anodized Max Load Capacity: Horizontal 15kg (33.07lbs) Vertical 3kg (6.61lbs) Weight: 1.6kg (3.53lbs) Accuracy Resolution: 5µm/Pulse, Non-MSDriver; 25µm/Pulse, 20MS Driver Max Velocity: 10mm/sec Bi-directional Repeatability: 8µm Absolute Accuracy: 10µm Straightness: 8µm Degree of Parallelization: 15µm Pitching: 25" Yawing: 20" Backlash: 5µm Others Optional Accessories: Grating Scales (-G), Servo Motor (-D) For other travel ranges of translation stages, please let us know. Origin Sensor and Limit Switches are existing.
