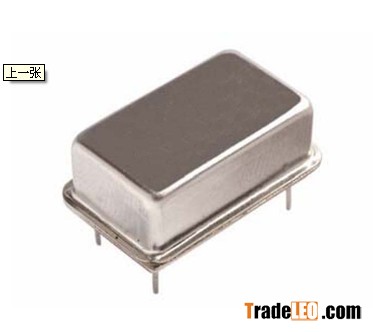

Crystal Clock Oscillators DIP14
Model No.: DIP14
Frequency Range: 1 - 125Mhz
Frequency Stability: +/-20ppm -- +/-100ppm
Operating Temp Range: 0C -- +/-70C
Storage Temp Range: -55C -- +/-125C
Output Load: 1-10TTL or CMOS 15-50pf
Input Current:
(1) 10mA max 1-4Mhz
(2) 30mA max 4-32Mhz
(3) 45mA max 32-80Mhz
(4) 60mA max 80-125Mhz
Input Voltage: 3.0vdc(+/-0.3v); +5.0vdc(+/-0.5v)
Symmetry: 45%-55%, 40%-60%
Rise/Fall time: 5ns typioal,10ns max
"O" Level:
TTL: 0.4v max CMOS: 10%vvd max
"1" Level:
TTL: 2.4v min CMOS: 90%vvd min
Special specifications are available as customer
ROHS compliant,Pb free
