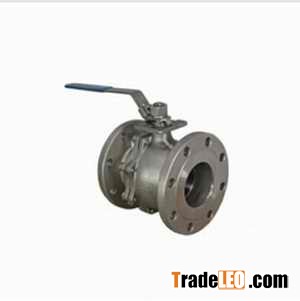

http://www.valvehome.com/floating-ball-valve/14008607.htmlProduct DescriptionProduct:Floating Stainless Steel Ball Valve
Design Features:
1.Bow-out proof stem
2.Key lock
3.Anti-fire safe design
4.Anti-static device
6.Automatic body cavity relief
7.Reliable Seat Seal
1) Design standard: API6D ASME B16.34 DIN 3357-1 EN12516-1
2) Face to face: API 6D DIN3202
3) Flanged ends: ASME B16.5 DIN2542 DIN 2543 DIN2544 DIN2545
4) Test & Inspection: API 6D API598 DIN3230-3 EN12266.
5) size: 1/2 inch ~ 24inch
6) Class: 150# ~1500#
7) Material: A216-WCB, A351-CF8M, A352-LCB Ball: A105+ENP, etc
Floating ball valves apply to various pipelines in Class150~Class1500, PN16~PN63, JIS10K~JIS2K, used for cutting off or connecting medium in the pipelines, by different materials, can be respectively suitable for water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea, and other medium.
