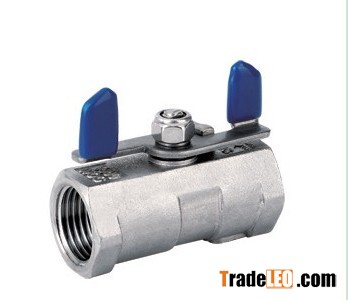

1PC Stainless Steel Thread ball valve

Working Pressure:PN16-64
Working Tempreture:-68 to 644 degrees Fahrenheit(-20 to 350 degrees Centigrade)
Thread Type:G.NPT,BSPT,BSP,DIN259/2999
Main Dimensions:1/4"--2"
Certification:ISO9001:2008
Suitable Medium:water,oil,gas and some corrosive liquid

   NO. PART NAME  MATERIAL
1 Joint ring  PTFE
2 Ball  SS316
3 Joint gasket  PTFE
4 Valve cap  SS316
5 Valve body  SS316
6 Valve stem  SS316
7 Thrust washer  PTFE
8 Packing  PTFE
9 Gland nut  SS304
10 Washer  SS304
11 Stem nut  SS304
12 Handle  SS
13 Handle sleeve PLASTIC
