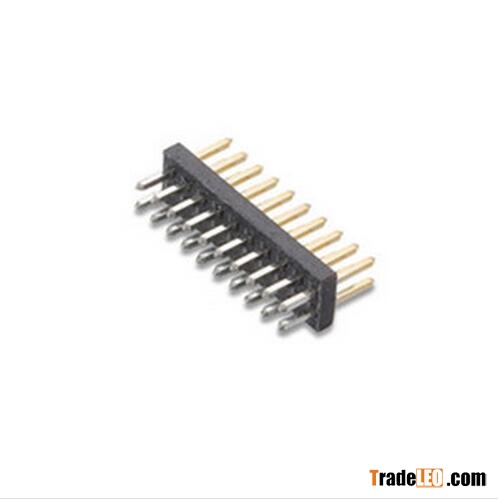

Rectangular connector 1.27mm pitch pin header
dip type board to board connector
Place of Origin: Guangdong, China (Mainland)
Model Number: 1.27mm pitch pin header
Type: pin header connector
Application: PCB
Connector Brand:CYLCONN
Connector type: 1.27mm pitch pin header
Insulator material: polyester,UL94V-0
Terminal: Phosphor bronze
Terminal finish: tin/gold plated
Rated current: 1A
Insulation Resistance: 1000M Ohms,Min
Dielectric withstanding voltage: 1000V/minute
Contact resistance: 40m Ohms max
Operation temperature: -40 degree centigrade to 105 degree centigrade
Packaging & Delivery Packaging Details: Standard packing,export carton
Delivery Detail: 20days
