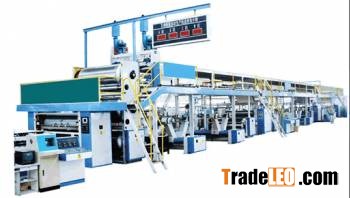

Complete corrugated cardboard production line consists of shaftless mill roll stand, fingerless type single facer, preheater, conveyer bridge, pasting machine, double facer machine, cut off machine, slitter scorer machine, stacker and glue making system. 3-layer,5-layer,7-layer production line are all avalaible.
Width from 1400mm to 2200mm.
production speed from 60-250 m/min.
Can make machines according to customer's requirements.
We can supply a complete corrugator or individual equipment to complete your own line.
such as:1800 Model five-layer corrugated production
Technical Parameters
Design speed:100m/min
Economic speed:60~80m/min
Working width:1800mm
Length of production line:about 65m (detailed length should depend on foundation drawing)
Corrugated flute types combination: A, C, B, E flute(Or customer specify)
Total power: about 150kw Normal power: about 120kw
