Main Features:1.Doube motors,double frequency conversion,small slip.
2.3-step DC annealing equipments.
3.High efficiency.
4.Small footprint,easy to operate.

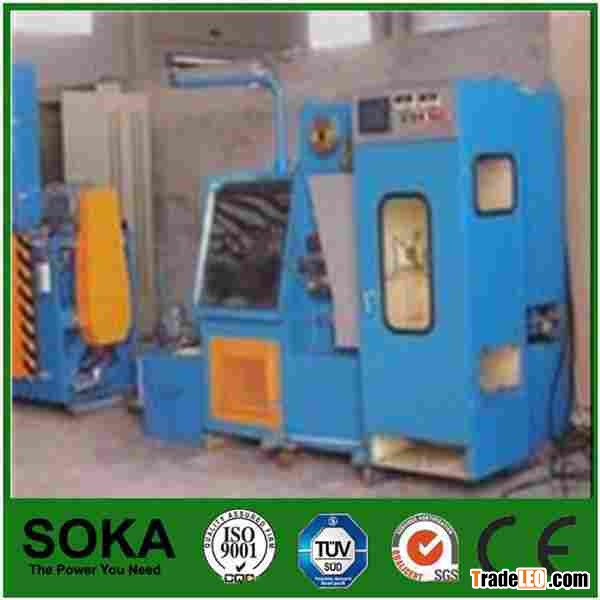

Machine model : JD-22DT
Inlet diameter(mm) : 0.8-1.2
Outlet diameter(mm) : 0.10-0.32
Max speed(MPM) : 2000
Main machine power(KW) : 15
Annealing Power(KVA) : 16
Take Up Power(KW) : 3.7
Annealing method : DC.Three-section annealing
Suitable spool(MM) : 300
Correction system : Automatically control
Capacity of Take-uo : 50KG
Sevice voltage : 380V
Brake : Electra mangentic brake
Machine dimension(MM) : 2100L*1600W*1700H
Machine weight : 3000KG
