Features:Vernier scale in metric units for taking precise measurements
Small size for measurements to 13mm
Available with plain or clamp-nut stem for mounting in a fixture
Satin chrome finish helps resist rust and reduce glare
Lapped carbide measuring face helps provide accuracy and wear resistance
Description:

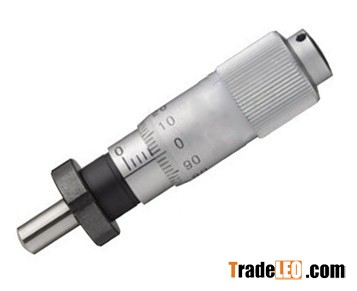

The 13mm series micrometer head has a small size and a vernier scale in metric units for taking precise measurements to 13mm. It is available with a plain stem for mounting in a fixture with a split-body clamp or setscrew, or a clamp-nut stem for quick mounting. The vernier scale is graduated to 0.01mm, and has a satin chrome rust- and glare-resistant finish. The measuring face is carbide-tipped for wear resistance and is lapped to help provide accuracy.
Specifications:
Model 01MH13SC
Range 13mm
Resolution 0.01mm
Stem Clamp Nut
Spindle Face Spherical
Custom micrometer head is available.
