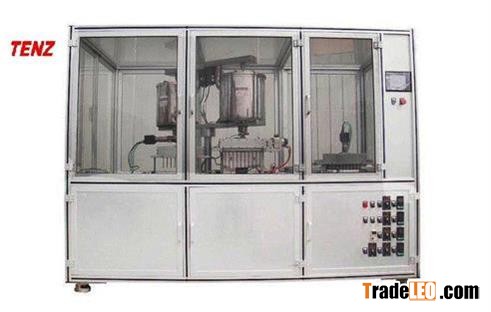

Model T Z-25 L 2-10 A is an automatic lipstick/pencil molding machine designed for the production of cosmetic pencil ,lipstick by silicone molding. Target products
Silicone molding lipstick,lip pencil
Mold (options)
Silicone mold and silicone mold holder
Capacity
50 p c s /min (10 nozzle filling heads)
Features
2 sets of 3 layers of jacketed vessels 25 L capacity with stirrer
Servo motor controlled dosing pump
Dosing volume and pump speed controlled by digital input ,Accuracy +/-0.5%
Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
Mold raise/lower system for bottom-up filling
Servo controlled mold raise /lower system
Mold heating (before and after filling)
Parameters
Voltage A C 220 V/ 50 Hz
Weight 600 kg
Body material T 651+S U S 304
Dimensions 2500*1200*2000
