Main Features: Video coding complied with H.264/AVC High Profile Level 4.0;
Video bit rate adjustment range: 1-20Mbit/s (SD); 5-20Mbit/s (HD);
CBR and VBR bit rate modes available;
Graphic resolution supports 1920*1080-60i, 1920*1080-50i, 1280*720-60p, 1280*720-50p, 720*576-50i, 720*480-60i;
Audio coding adapts MPEG-1 Audio Layer 2;
Audio bit rate supports: 64Kbit/s, 96Kbit/s, 112Kbit/s, 128Kbit/s, 160Kbit/s, 192Kbit/s,
224Kbit/s, 256Kbit/s, 320Kbit/s, and 384Kbit/s;
Excellent error recovery capability;

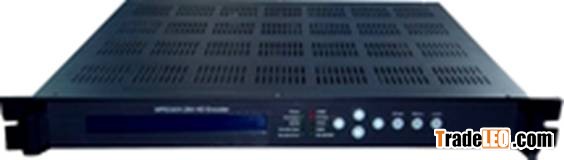

1U single rack unit chassis, LCD panel operation
Service Port:
Input video Port: HD-SDI (support embedded audio), ASI port, analog composite video/S-VIDEO (optional);
Input audio Port simulate equilibrium or non- equilibrium audio port (optional), AES audio port (optional);
Output Port: DVB ASI Port;
Network Port:
100base-T Ethernet port
