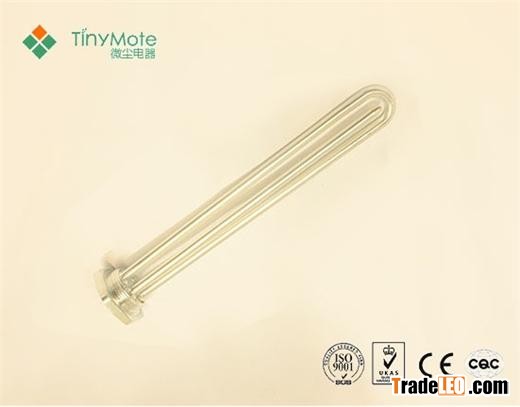

1.Water Heater Tubular Heating Element2.Body material:T2 Red Copper;SUS304;SUS316L;SUS310S,and so on.
3.Pipe Size:F6.5~8.5mm;Thickness0.4~0.6mm
4.Terminal Size:SS250#parent plugins
5.Terminal Connection:spot welding
6.Parallel error of ends face and terminal: 0.5mm
7.No serious leakage solder inside of flange
8.Temperature Control:Insertion Regulated Thermostat;sealing with screw flange coupling
9.Flange and pipe joint with tinning welding,withstand 1.2MPa pressure test no leakage
10.The Weight of 1 1/4?Copper flange is about 110g,1 1/4?SS flange
11.Surface Treatment:electronickelling;Natural color bright heat-treatment
12.Customized Voltage and Power
13.Overall Dimensions:OEM,customized in drawing or samples.
14.Electrical Performance:AC1500V/0.5mA.3S;DC500V 100MO;Leakage current<0.5mA
