Brand:CHENGHENG
Quantity:200
Send Inquiry

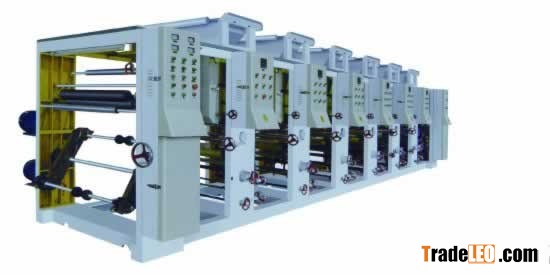

Feature 1. 360°non-stopping register sets with easy operation
2. Double-line far-infrared heating tube drying system.
3. Magnetic powder brake applied to unwinding tension system and torque motor used for winding.
4. Double-station winding and unwinding mechanism; semi-automatically receiving and replacing materials with no stop.
5. One-time continuous printing of both the front and the back sides.
Model CHCY--6/600A CHCY-6/800A CHCY-6/1000A
Printing length 220mm-1100mm 220mm-1100mm 220mm-1100mm
Printing width 600mm 800mm 1000mm
Printing speed 10-60mm 10-60mm 10-60mm
Printing precision ±0.15mm ±0.15mm ±0.15mm
Total power 28kw 32kw 36kw
Weight 5000kg 5500kg 6000kg
Overall Dimension 8800*1950*2300mm 8800*2150*2300mm 8800*2350*2300mm
