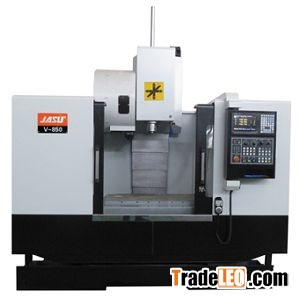

Brand:JASU
Send Inquiry
Worktable Table size/(L*W) 1120 x 510
T-slot size/mm 100x 18 x 5
Max load on the table/kg 600 kg
Travel
Max. X/Y/Z axis travel 1000 / 560 / 510
Spindle nose to table surface/mm 110-620
Spindle nose to column surface/mm 610
Spindle
Spindle taper BT40
Max. Spindle speed/rpm (Standard) 8000 rpm
Spindle driven (Standard) Belt drive
Feeding
Max cutting feed rate(M/min) 10000
X,Y,Z rapid traverse 36/36/36 m/min
A.T.C
Tool magazine type Disc Type/ Hat Type
Tool magazine capacity 20/24
Max. tool diameter and length 80 x 200
Max. tool weight 8 kg
Tool shank type BT40
Servo Motor
Spindle motor 7.5/11 kW
X/Y/Z axis servo motor (Fanuc) 1.8 / 1.8 / 1.8 kW
X/Y/Z axis servo motor (Mitsubishi) 2.0 / 2.0 / 2.0 kW
Coolant motor 0.49 kW
General
Air Requirements 6KG
Power Capacity 15KVA
Measurement 2.7x2.4x2.5m
N.W. 5500 kg
