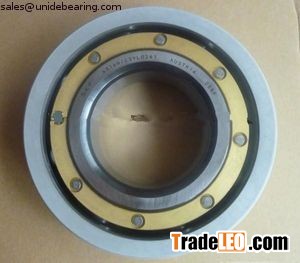

SKF Insulation bearing : 6317 M/C3VL0241Type: deep groove ball bearings, single row, INSOCOAT
Bore diameter: 85mm
Outer diameter: 180mm
Inner diameter: 41mm
Dynamic load: 133 Kn
Static load: 96.5 Kn
Ref speed: 8000 rpm
Limiting speed: 5000 rpm
Weight: 4.1 KGS
Seals / Shields: none
Clearance: C3 larger than normal
Cage: machined brass
Contact: sales(at)hzskf.cn
Skype: lovejoanna8
www.industrybearing.com
Feature: SKF INSOCOAT bearing has the outside surfaces of its inner or outer ring plasma-sprayed with an aluminium – oxide to form a coating. The basic coating can withstand voltages up to 1000 VDC.
