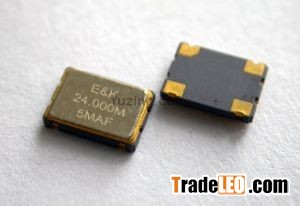

(1).This SMD quartz resonator is for high precision usage, such as mobile telephone, BP etc. It can be mounted automaticly. It is well seamed. It is thiner and smaller in appearance.(2).Description:
@.Frequency Range 12.000MHz to 54.000MHz
@.Frequency Tolerance(at25°) ±10ppm, ±20ppm, ±30ppm, or specify
@.Frequency Stability Over Operating Temperature @.Range ±10ppm, ±20ppm, ±30ppm, or specify
@.Load capacitance Series Series,16pf,20pf,30pf,32pf, or specify
@.Operating Temperature Range -20°to +70° or specify
@.Storage Temperature Range -40° to 80°
@.Shunt Capacitance 5.0pf maximum
@.Drive Level 10uW(100uW)
@.Aging(at25°) ±3ppm or ±5ppm/year max
