E-Bike Charger

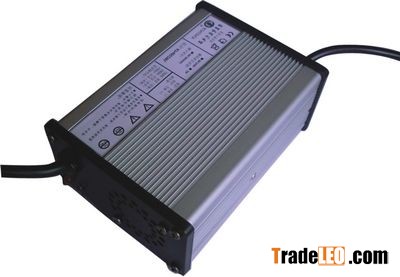

Robust Aluminium Battery Charger For Electric Bike/Scooter.

High frequency, switching mode battery charger

Specifications:

Size: 120×90×50mm

Net Weight: 0.7KG

Max Wattage: 120W


Features:

1.Charging method: constant current(CC), constant voltage(CV), cut-off or float (for Lead acid)

2.Short-circuit protection: charger o/p current automatically when short-circuit.
3.Overload protection: charger o/p current limited automatically when overload.

4.Reverse polarity protection: It will shut down when the wire is connected, change DC fuse or remove the fault.


Apply to: Electric Bike/Bicycle/Scooter

Output Voltage and Current: 12V/6A, 24V/3A, 36V/2.5A, 48V/2A
