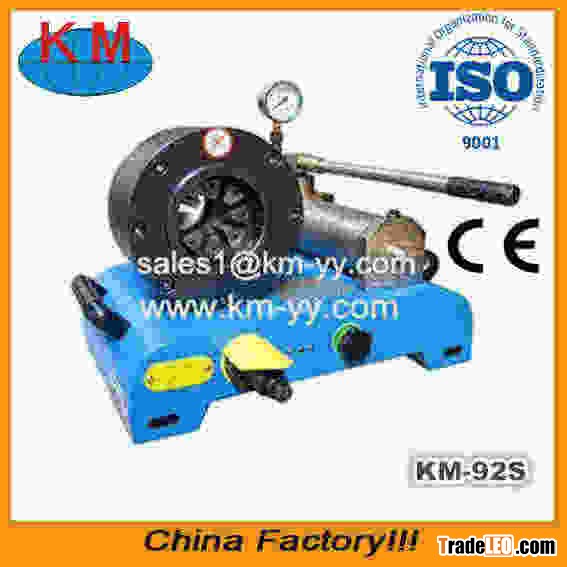

Hose Crimper hose crimping machine manual type 1 1/4" inch non electric pressing machine pressing tool KM-92SAdvantages:
Small volume,low weight and easy to be moved.
When crimping to the pre-set size, indicator light will be on.
Suitable for outdoor, non-electricity manipulation.
Fast speed with compound die base.
Load-off handwheel make the die return fast
Place of Origin Hebei, China (Mainland)
Brand Name Kangmai
Model Number KM-92S
Crimp range 1/8" ~1 1/4" 4SH
Opening without dies 108mm
Opening 28mm
Swaging force 1370KN
Die profile 92 series
No. of standard die set 12sets
hydraulic fluid wintter:YB-N32; summer: YB-N46
Systematic pressure 30Mpa
oil tank size 1.3L
L*W*H 550mm*620mm*395mm
