Pre-feeding Design, effectively protect the personal safety of the operator when in the production, and also can reduce the labor intensity at the same time.Knife section's stir and Timble axis advance and retreat are using oil hydraulic cylinder to control. teady speed, pressure invariableness, it can avoid stricking and chopping.
Sub-feed speed can be controlled.
High speed?High efficency?High quality, used for processing multitudinous parts.

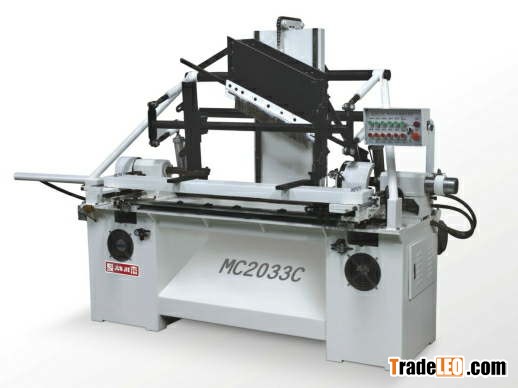

Model MC2033C
Working Diameter 20-80mm
Working Length 200-1100mm
Spindle Speed 1500-3000r/min
Hydraulic Pressure 25-60kg/ cm²
Air Pressure 0.6-0.8mpa/ cm²
Installed Power 6kw
Voltage 380V 50HZ
Overall Dimension 3600*1500*2200mm
