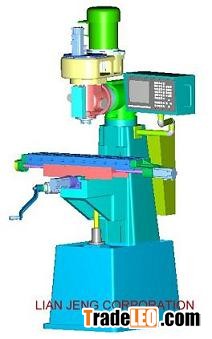

Models (CF-A2NC)Table ???
Working surface(length*Width)?? 760x180mm
Traveling (X / Y / Z)?? 480x200x350mm
T-Slots T?? 16mmx3
Vertical Spindle ???
Spindle nose ???? N.T.#30
Spindle speeds (R.P.M.) ?? 3,500 r.p.m
Distance from spindle end to table top
?????????? 50-350mm
Vertical travel of quill????? 80mm
Swiveling angle of head(right & left)????? 90°
Cross travel of ram????? 180mm
Horizontal rotation angle or ram?????? 360°
Motor ??
For vertical spindle ???? 1.5KW
For X/Y feed X/Y????? 0.4KW
For Vertical of quill feed ??????? 0.4Kw
For cutting fluid pump ?????? 0.1KW-4P
Size ??
Net weight(approx.) ?? 600kg
Dimensions of machine(approx.) ???? 1200x1100x2000mm
