Technical Parameter

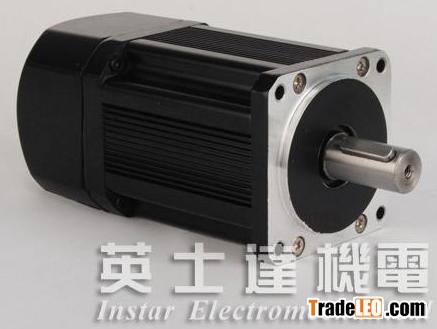

Servo Motor Model YSD06040ASK
Servo Driver Model
Size(?) ?60
Power Rating W 400
Rating Torque N.m 1.27
kgf.cm 12.95
Holding Torque N.m 3.8
kgf.cm 38.76
Rated Revolutions r/min 3000
Rated Revolutions kg•m2×104 0.302
Rotor Inertia N•m/A 0.5
Torque Constant V/krpm 41.1
Dielectric Strength O 5.83
Resistance mH 12.23
Inductance ms 2.1
Specification
And Features Structure Enclosed totally,No ventilationIP65(Not include the shaft and the connection part)
Ambient Temp Working temperature:0~40???,Storage Temperature:-20~80???
Ambient Humidity Lower90???(No condensation)
Air Avoid direct sunlight,Corrosive gas?Flammable gas?Lil or dust
Weight kg 1.3
