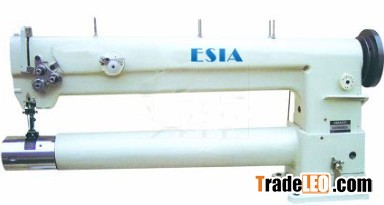

Long Arm Cylinder Bed Double Needle Compound Feed Sewing Machine | Long Arm Filter Bag Ring Sewing MachineFeatures:
ES-4431 long arm sewing machine use synchronous feeding system to prevent the material slip. Upper and lower axis is driven by synchronous gear belt. Needle distance is adjustable by setting the knob. There is a safety device to protect the machine in case of overload.
Application:
Widely used for sewing tent, parachute, hot air balloon, sofas and so on. Especially suitable for filter bags and cylindrical product.
Max Speed 1500R.P.M
Max Stitch Length 6mm
Presser Foot Lift Manual 9mm, Knee 15mm
Needle Gauge 1/2", 1/4", other size requested
Needle Bar Storke 33.6mm
Rotary Hook Large Vertical Hook
Work Space 650mm*100mm
Motor Power 550W
Thread Take-up Lever Stroke 60mm
