Price:Negotiable
Brand:ZKJD
Quantity:100000

Send Inquiry

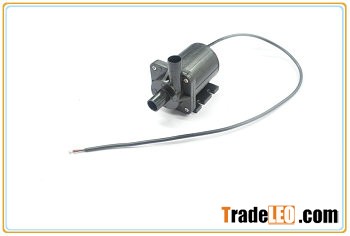

ZK40A
1.Stator and circuit board sealed by epoxy resin, completely water proof
2.Brushless, permanent magnetic rotor, maintenance-free, long life
3.small size, high efficiency, low consumption, low noise
4.Ceramic sleeve and ceramic shaft [optional]
5.Parameter adjustable, 12v pump’s head can be 2m to 4.5m..
6.Can be customized

Parameters (The technical specification only for reference, it can be customized)
model voltage Rated current head flow power
V A m ft L/H G/H w
ZK40A-0510 5 0.65 1.0 3.5 320 85 3.25
ZK40A-0615 6 0.70 1.5 4.9 380 100 4.20
ZK40A-0930 9 1.20 3.0 9.7 530 140 10.8
ZK40A-1220 12 0.53 2.0 6.5 450 120 6.36
ZK40A-1230 12 0.90 3.0 9.7 530 140 10.8
ZK40A-1240 12 1.10 4.0 13 650 172 13.2
ZK40A-1245 12 1.20 4.5 14.6 680 180 14.4
ZK40A-2430 24 0.45 3.0 9.7 530 140 10.8
ZK40A-2440 24 0.55 4.0 13 650 172 13.2
ZK40A-2450 24 0.80 5.0 16.2 690 182 19.2
ZK40A-2460 24 1.20 6.0 19.4 720 190 28.8
