Brand:ZKJD
Quantity:100000
Send Inquiry

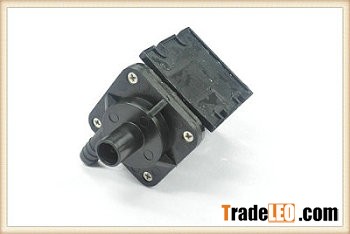

ZK401.Ceramic sleeve and ceramic shaft [optional]
2.Brushless, permanent magnetic rotor, maintenance-free, long life
3.small size, high efficiency, low consumption, low noise
4.Stator and circuit board sealed by epoxy resin, completely water proof
5.Parameter adjustable, 12v pump’s head can be 2m to 5m..
6.Can be customized
Parameters (The technical specification only for reference, it can be customized)
model voltage Rated current head flow power
V A m ft L/H G/H w
ZK40-0510 5 0.5 1.0 3.5 250 66 2.5
ZK40-0615 6 0.6 1.5 4.9 300 79 3.6
ZK40-0935 9 1.10 3.5 11.4 420 122 9.9
ZK40-1220 12 0.45 2.0 6.5 350 93 5.4
ZK40-1230 12 0.70 3.0 9.7 400 106 8.4
ZK40-1240 12 1.00 4.0 13.0 460 122 12.0
ZK40-1250 12 1.20 5.0 16.0 520 137 14.4
ZK40-2430 24 0.35 3.0 9.7 400 106 8.40
ZK40-2440 24 0.50 4.0 13.0 460 127 12.0
ZK40-2450 24 0.55 5.0 16.0 520 148 14.4
ZK40-2460 24 0.80 6.0 19.5 580 153 19.2
ZK40-2470 24 1.15 7.0 22.7 620 164 26.4
