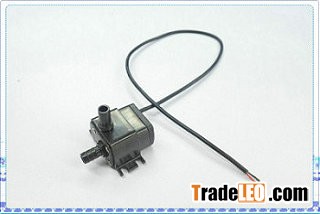

ZK30A
1.small size, high efficiency, low consumption, low noise
2.Brushless, permanent magnetic rotor, maintenance-free, long life
3.Stator and circuit board sealed by epoxy resin, completely water proof
4.Parameter adjustable, 12v pump’s head can be 1.5m to 3m..
5.Can be fixed on the vessel wall with sucking disk
6.Can be customized

Parameters (The technical specification only for reference, it can be customized)
Model Voltage Rated Current Max flow Max water head Power
V A L/H G/H M ft w
ZK30A-0406 4.5 0.10 100 26 0.6 2.0 0.45
ZK30A-0507 5 0.11 110 29 0.7 2.3 0.55
ZK30A-0609 6 0.11 120 32 0.9 3.0 0.66
ZK30A-0712 7 0.13 160 42 1.2 3.1 0.91
ZK30A-0913 9 0.14 170 42 1.3 4.2 1.26
ZK30A-1215 12 0.18 200 53 1.5 4.8 2.16
ZK30A-1219 12 0.22 210 55 1.9 6.2 2.64
ZK30A-1223 12 0.23 220 58 2.3 7.5 2.76
ZK30A-1225 12 0.26 230 61 2.5 8.1 3.12
ZK30A-1227 12 0.29 235 62 2.7 8.8 3.48
ZK30A-1230 12 0.35 240 63 3.0 9.7 4.20
