Brand:BEIYA
Quantity:50
Send Inquiry
Technical parameter:1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 800-1200 cartons/hour

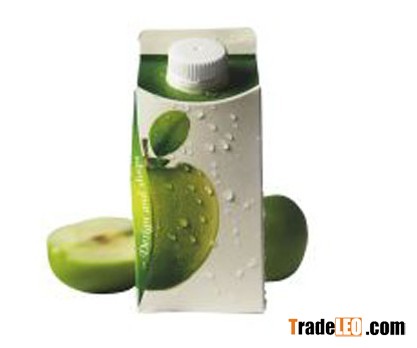

3. Packing material: Cardboard carton / aluminium foil carton
4. Filling Temperature: Cold filling: 2-50 degC/ hot filling 88-92 degC
5. Cap: With capping / without capping (Optional)
6. Overall power: 23KW (three phases of electricity)
7. Size: (L*W*H): Carton forming machine: 1.3m*0.9m*1.5m
Capping machine: 0.8m*0.6m*1.2m
Filling machine: 2.0m*0.9m*2.6m
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 0.8-1.0M3/min, without oil, water and dust
9. Cooling water: Flow volume: Less then 20L/ min Temperature: Normal temperature
10. Net Weight: 1200kg (carton forming machine: 300kg, capping machine: 100kg, filling machine: 800kg)
11. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
