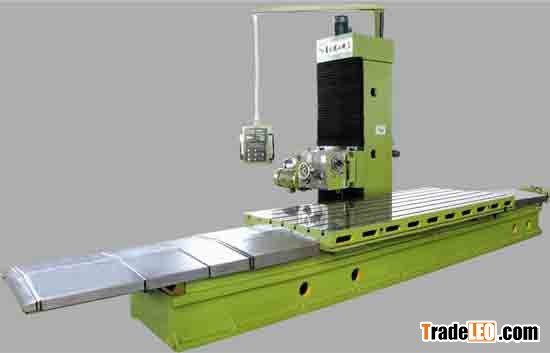

Specifications X12 series Face Milling MachinesX1220 X1230
Table Size(WxL) mm 1200 x 2000 1200 x 3000
Motor power mm 4 5.5
Max. load kg 2000 3000 5000
Max. work-piece dimensions L xW xH mm 2000 x1400 x800 3000 x1400 x800 3000 x1600 x800
Distance between columns mm 1450 1620
Milling head Motor power kw 7.5
Spindle taper ISO50
Spindle speed r/min 100-685(6 steps)
Swivel angle ± 30°
Distance from spindle nose to table surface Vertical mm 0-800
Horizontal mm 100
Recommendatory dia.of tools mm F160
External dimensions LxWxH mm 6080x2630x2800 8080x2630x2800 8080x3230x2800
