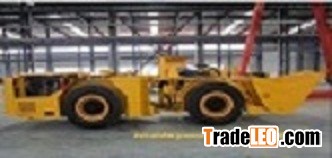

2M3 underground diesel LHD(WJ-2A) - Sell

2M3 underground diesel LHD(WJ-2A)

2017-01-14 07:06 Views:275

Price:Negotiable

Product Specification/Models
Dimension

Length X width X height/mm:7280x1770X1950

Weight

Empty weight/T:12

Rated load/T:4

Capacity

Standard bucket/m3:2

Max. unloading height/mm:1800±150

Min. unloading distance/mm:930±150

Forward and backward traveling speed

1gear/km/h: 3.0±0.3

2gear/km/h:6.5±0.5

3gear/km/h:12.5±1

Turning radius

Inner/mm:2600±200

Outer/mm:4900±200

Diesel engine:Deutz F6L912W (63KW)

Torque converter: DANA C272-324

Gearbox:DANA RT20326

Drive axle:Xuzhou Meitong TLCY-2S-R, TLCY-2S-F

Main hydraulic components

Filling valve:US Mico

Pedal valve:US Mico

Working valve:US PARKER

Steering valve: US PARKER
