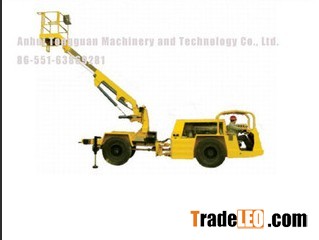

Product DescriptionUC-1C underground service vehicles-Arm type platform vehicle is special to worker doing job underground, it's safety and mobility.
Product Feature
Style: UC-1C
All Dimension: Length/width/height7790± 100*1900± 50*2260± 50(mm)
Vehicle Turning Radius: Inner3800(mm)Outer5900(mm)
Empty weight: 8000± 300KG
Rate load: 1000KG
Platform area(mm*mm): 1350± 50*1400± 50(mm)
Max lift height: (6000± 200)mm
latform Turning angle: 30degree or 2m(left and right)
Underground service vehicles have the same specification as below.
General Specifications
Min. ground clearance mm greater than or equal 230
Climbing ability(heavy load) % 25%
Lateral Swing Angle (º ) Both right and left 7~10
Max. travel speed km/h
I gear 4.5± 0.45
II gear 10± 1
III gear 22± 2
Max. traction kN greater than or equal 80
