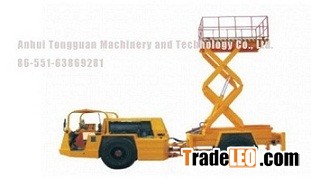

Scissor-Type Hydraulic Lifting Platform vehicle is special to lift worker to doing job in underground environment. Style: UC-1A
All Dimension: Length/width/height 6860± 100*1900± 50*2000± 50(mm)
Platform area(mm*mm): (2540± 60)*(1680± 40)
Empty weight: 7300± 300KG
Rated load: 1000KG
Max lift height: over 4000 mm
Min. ground clearance mm:greater than or equal230
Climbing ability(heavy load) % 25%
Lateral Swing Angle (º ) :Both right and left 7~10
Max. travel speed km/h
I gear 4.5± 0.45
II gear 10± 1
III gear 22± 2
Max. traction kN over 80
Rated loading weight kg 5000± 500
