Brand:No
Quantity:15
Send Inquiry

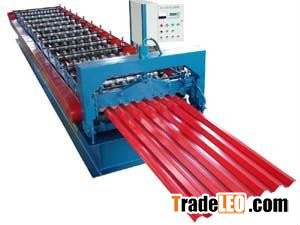

Technical parameters:Roll forming machine technical parameters
Number of forming steps 9-22 rollers
Material of shaft 45# steel adjustable treatment( soild shaft )
Outer diameter of the shafts 70/75mm
Material of rollers 45#steel, plating hard chrome on the surface
Chromium’s thickness on the surface of rollers 0.05mm
Main motor power 3kw or 4KW
Oil pump motor power 3kw or 4Kw
The working speed 0-3 m/ min
Thickness of the steel coil < 1mm
Material of blade Cr12 mould steel with quenched treatment60-62
Cutting system automatically cutting after forming
All the equipments Manual decoiler, Feeding table, Main forming machine, hydraulic cutter, electrical control system, hydraulic system, Normal receiving table
