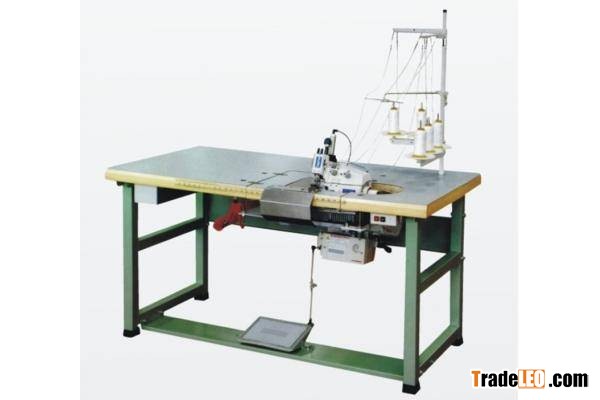

This mattress flanging machine is maninly used for flanging mattress panel and fabric. This mattress manufacturing equipment can also sew non-woven fabric together with the panel. Technical Features:
1) Double-needle-four-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam.
2) The sewing speed is controlled with imported needle position motor and control box.
3) Equipped with pneumatic auto presser foot, equipped with special encoder to position needles. Low noise, small vibration, stable performance.
Main Technical Parameters:
Max Rotating Speed: 2200RPM
Flanging Width: 25mm
Flanging Thickness: (30-60)mm
Stitch Length: (2-6)mm
Needle Model: B64/TV64
Air Pressure: (0.5-0.8)Mpa
Power: 560W
Power Supply: Single-Phase, 220V, 50Hz
