1.Lifting capacity:max. 90t2.Hoisting height : 96 m
3.Hoisting speed: 22 m/min
4.Luffing speed: 64MIN
5.Slewing speed: 0.3RPM
6.Travelling speed:5 km/h
7.Working radius:12~45m
8.Max work moment:1400t*m
9.Working wind speed: 15m/s
10.total power:330kw
11.total length of the crane:20m
12.total width of the crane:4.5m
13.max inclination in transversal direction 5% without load , during travelling
14.max inclination in longitudinal direction 15% without load , during travelling
15.working temperature:-20c~+40c
16.total weight: 320t

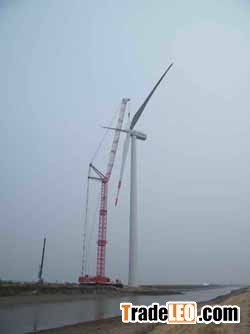

17. It can satisfied with 1.5MW and 2.0MW
We can provide the appropriate crane according to the need of the client.
