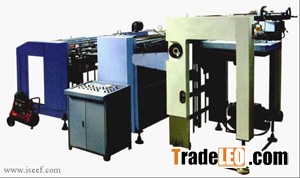

The automatic paper embossing machine with the functions like automatic feeding& collecting paper was developed at the basis of the original embossing machine with manual feeding and collecting, Full automatic control in processing. Adopted frequency governor, automatic hydraulic system and pneumatic blade, it is characterized by controllable speed, double-sheet control, automatic counting, etc. Its average can range form 3000~5000pc/h. It is applied to embossing the sheet surfaces of batches like packing products, playing cards, gift cards, golden and silver card paper, etc.MAIN TECHNICAL INDEX
Model YW-1150E
Max embossing speed 80 m/min
Max embossing width 1000 mm
Paper range >160 g/m2
Operation pressure 2-10 Mpa
Main motor pressure 15 kw
Vacuum pressure 0.06 Mpa
Air source pressure 1.8-1.0 Mpa
Overall dimension(LxWxH) 4800x1800x1800 mm
Weight 4200 kgs
